Ebike Light LED 36V 48V Electric Bike Headlight and Rear Light Also with Turn Signal Light Set

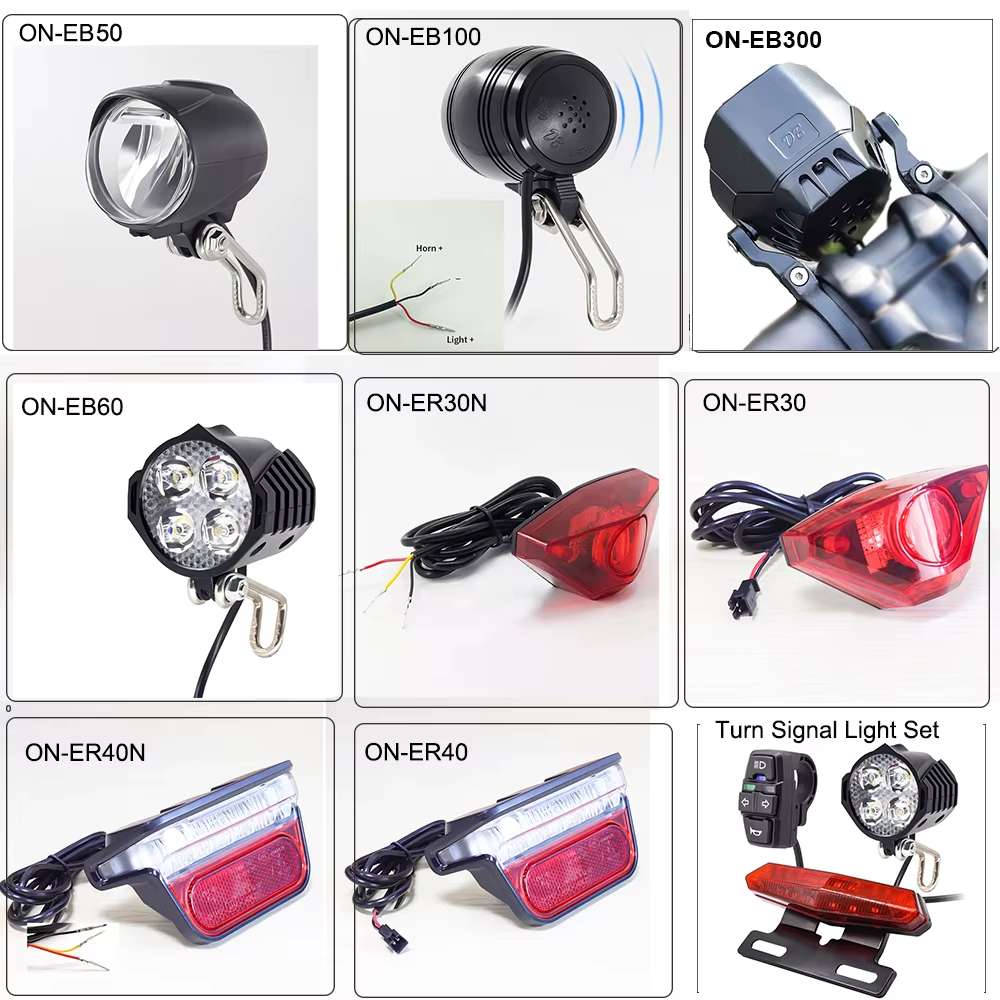

Onature is a professional manufacturer and distributor of ebike lights:
If you need ebike light fits with Bafang Middle Motors, choose ON-ER30N;

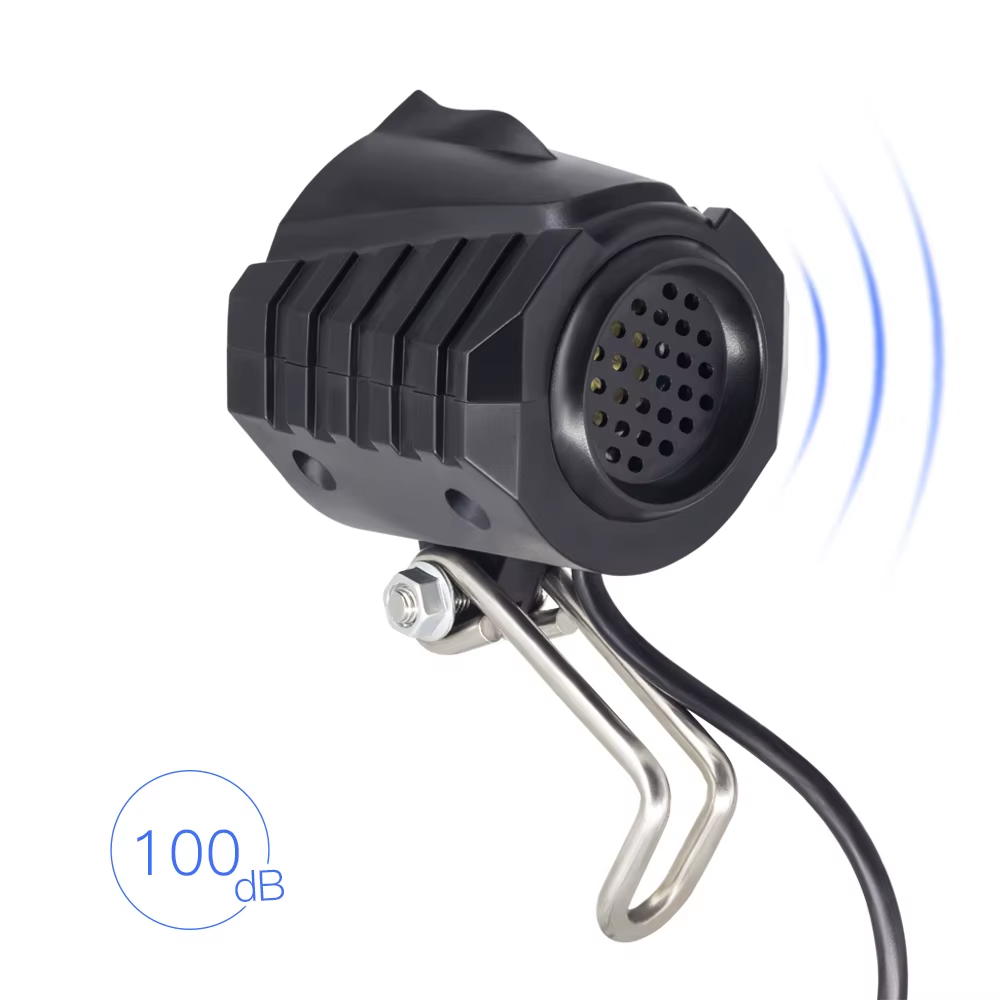

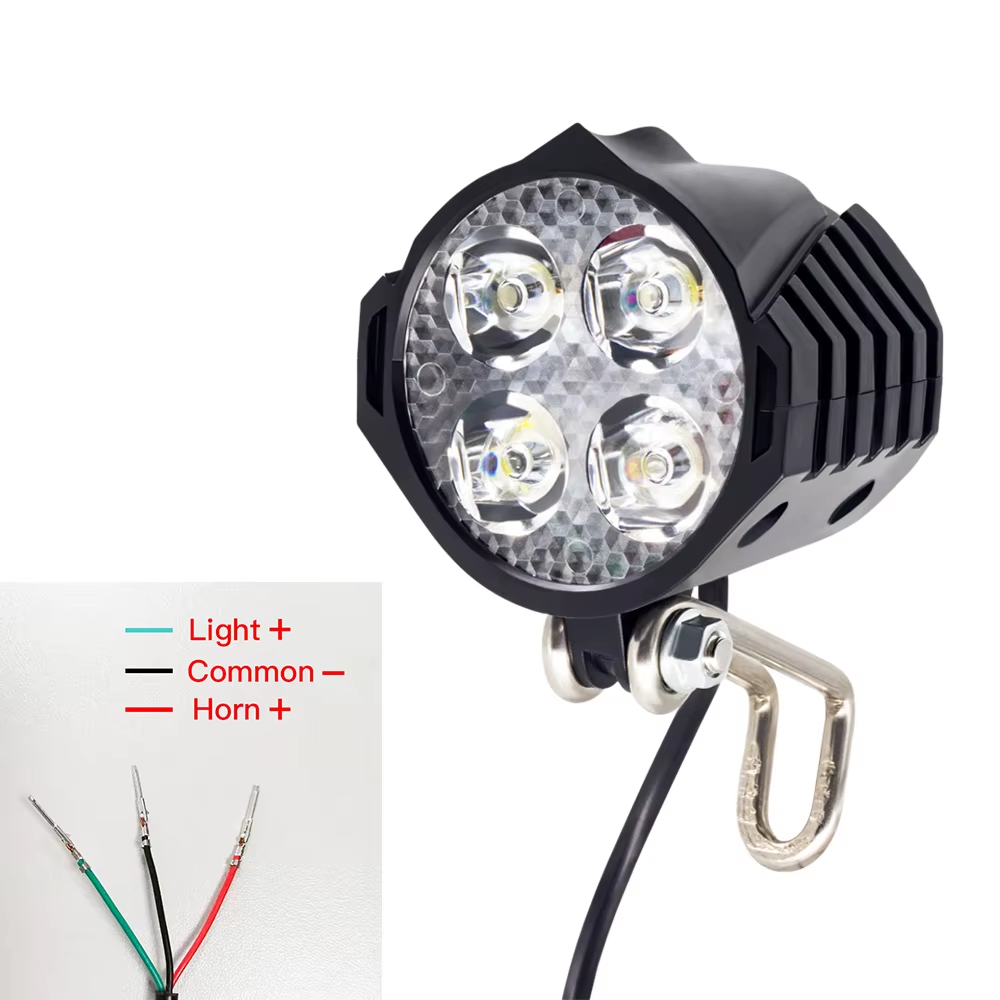

If you need ebike lamp with horn, choose ON-EB60 and EB300;

If you want an ebike headlight installed on Handlebar, please choose the ON-EB300;

If you want your ebike light with turn signal rear light, please choose ON-ERFS6007

Can Install on Handlebar Headlight: ON-EB300:

Specifications:

1. Power: 4W.
2. Input:DC24V 36v 48V
3. Brightness: 250 lumens
4. Material: Plastci,light weight.
5. Wire: Length 1 meter
6. IPX4 waterproof, rain waterproof

With two kinds installation way:

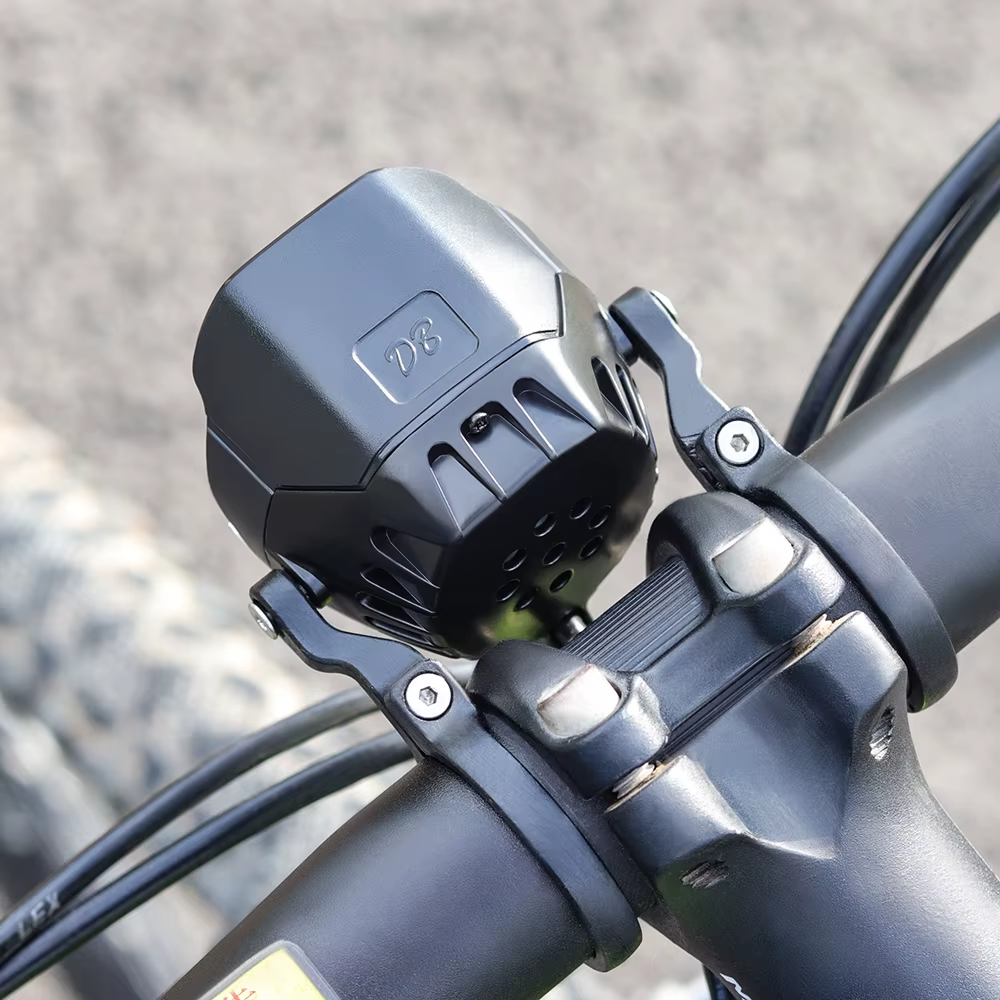

1.The e-bike headlight install on handlebar,looks great mount
2.The electric bike light install on fork,not ocupy your handlebar space

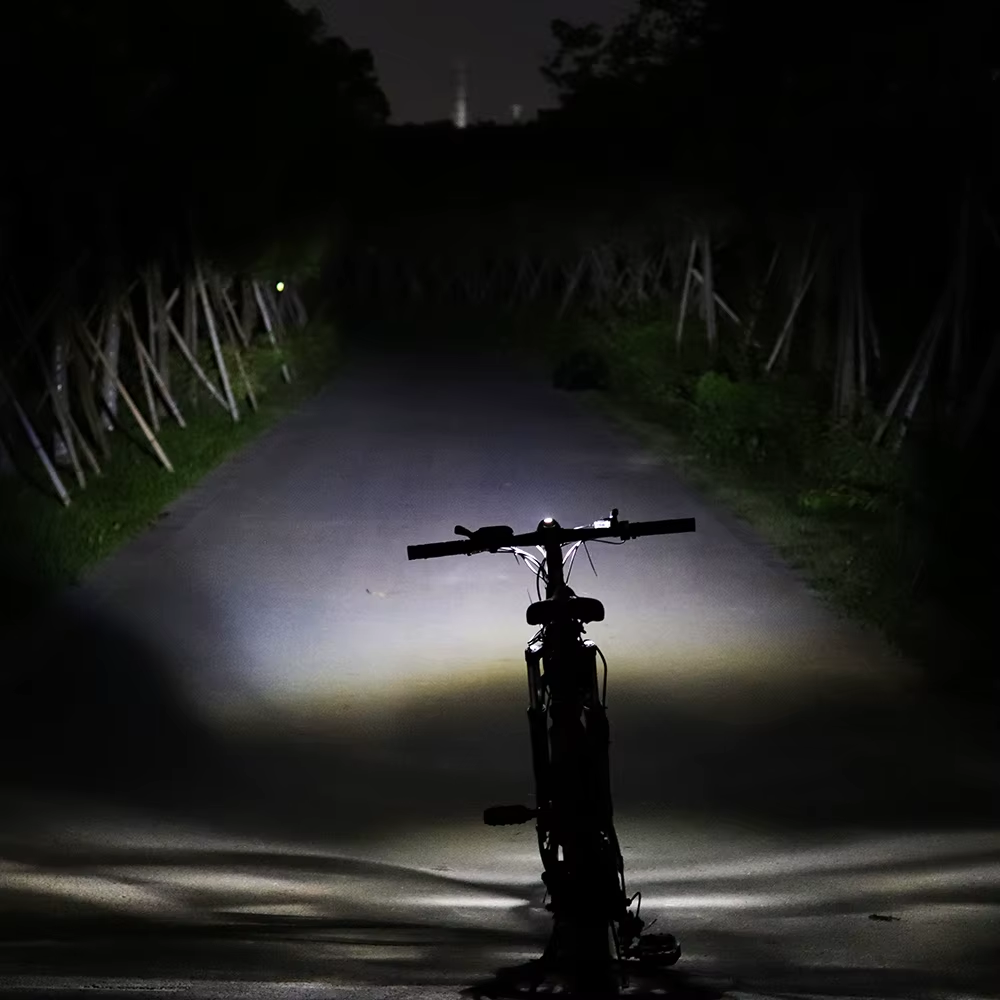

The light output will not dazzle others on road
-Use German Stvzo standard
-Light output focus on road central

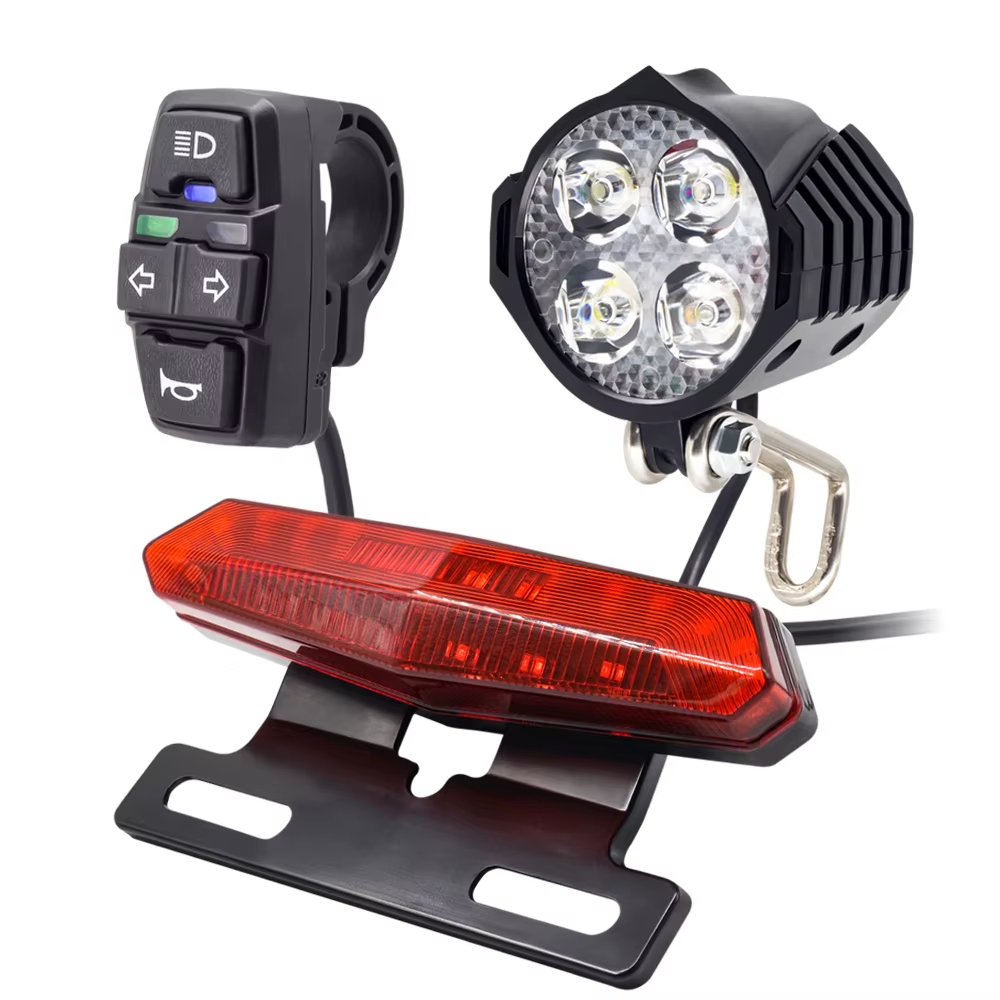

1.The set include ebike headlight+turn sginal rear light+switch

2.The rear light with brake function, when brake, the rear light will be brighter.But need the brake a low voltage.

3.This turn signal light set will not work in a Bafang or TSDZ mid motor.

4.Work voltage: 36V OR 48V.

Ebike Switch:

1.For handlebar size: 22.0mm
2.Product size: L54*W27*H54MM
3.Waterproof: IP65
4.Cable length: 1.5 M
5.Applicable voltage range:36V-48V

6.Maximum working current: 1A

7.Shell material: plastic

Ebike Turn Signal Rear Light

1. Net weight of ebike brake taillight: 120g
2. Shell material: plastic
3. Applicable voltage range: 36-48V
4. Power: 1.5W
5. Number of light sources: 14
6. Luminous flux: 15LM
7. Product size: 132*65*40mm
8. Cable length: about 1.2M

1. Net weight of the whole set is 400g

2. Package weight: about 0.65KG (small carton)

3. Work status description:

Headlight: When the switch of headlight is turned on, the headlights and tail lights are on

Horn: When the horn button is pressed, the horn starts to work, release it to cancel

Brake light: When the brake signal line and the controller brake low voltage signal are connected normally, the brake light will light up while braking, and the brake light will go out when the brake is cancelled

Turn signal: When the turn switch of the designated direction is toggled, the turn signal of the corresponding direction starts to work and flashes, the flashing frequency is about 800ms each time

About Model ON-ER30N ON-ER30

These two models with same below features:
1. Input: DC6V-52V
2. Cable length: 100 cm
3. Two installation screw distance: 50mm
4. Material: Plastic,light weight.
5.Big beam angle 180 degree,different direction can see the electric bicycle rear light.

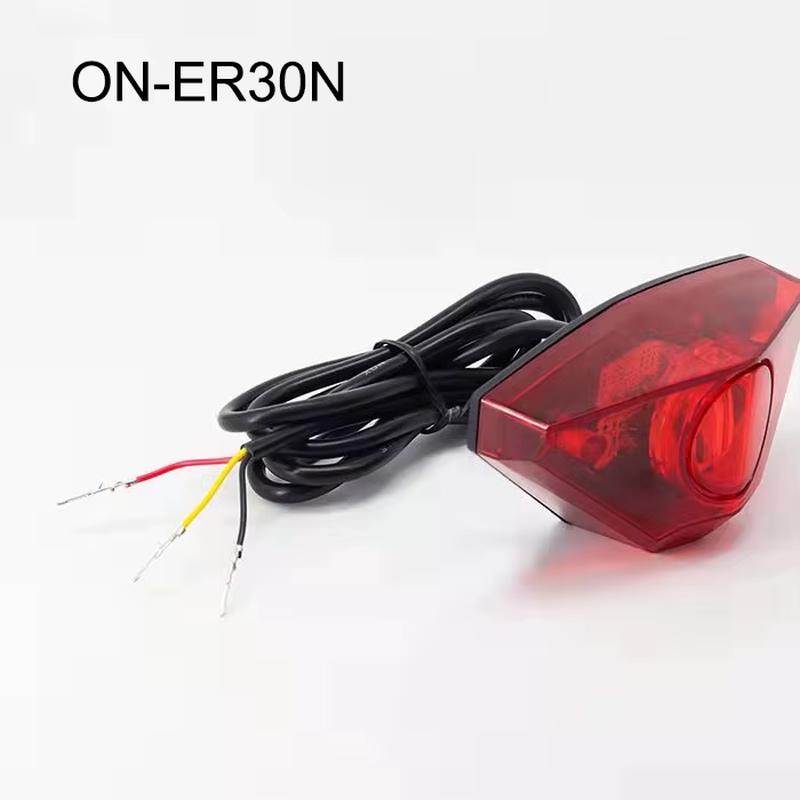

Difference of ON-ER30N
1.Power is 0.6W,only 20 lumens.
2.With three cables,red is positive pole,black is negative pole,and yellow is for brake function.
When brake,the power will be 3W,brightness is 40 lumens.

Difference of ON-ER30
1.Power is 3W,total 40 lumens.
2.Come with SM connector,easy to connect with controller or motor.

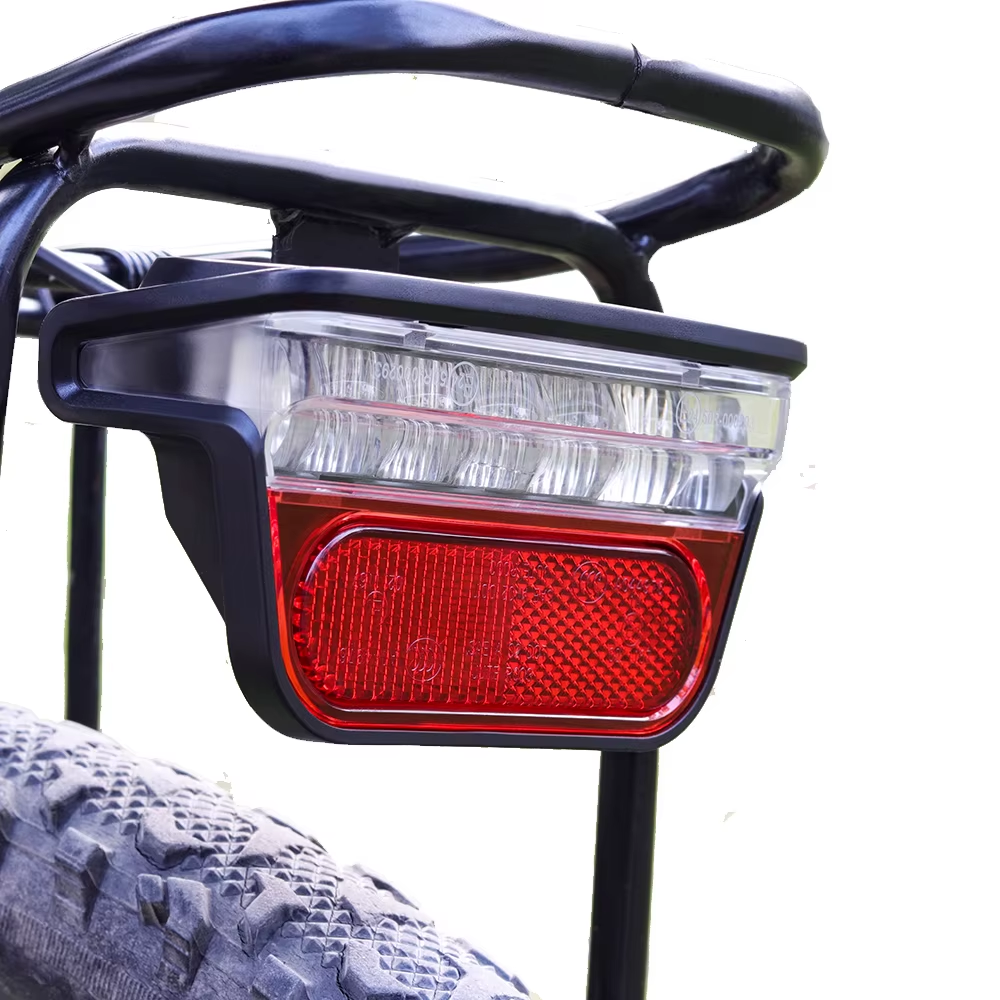

About Model ON-ER40N ON-ER40

These two models with same below features:
1. Input: DC6V-52V
2. Cable length: 95 cm
3. Two installation screw distance: 50mm
4. Material:Plastic,light weight.
5.Big beam angle 320 degree,different direction can see the electric bicycle rear light.

Difference of ON-ER40N
1.Power is 0.6W,only 20 lumens.
2.With three cables,red is positive pole,black is negative pole,and yellow is for brake function.
When brake,the power will be 3W,brightness is 40 lumens.

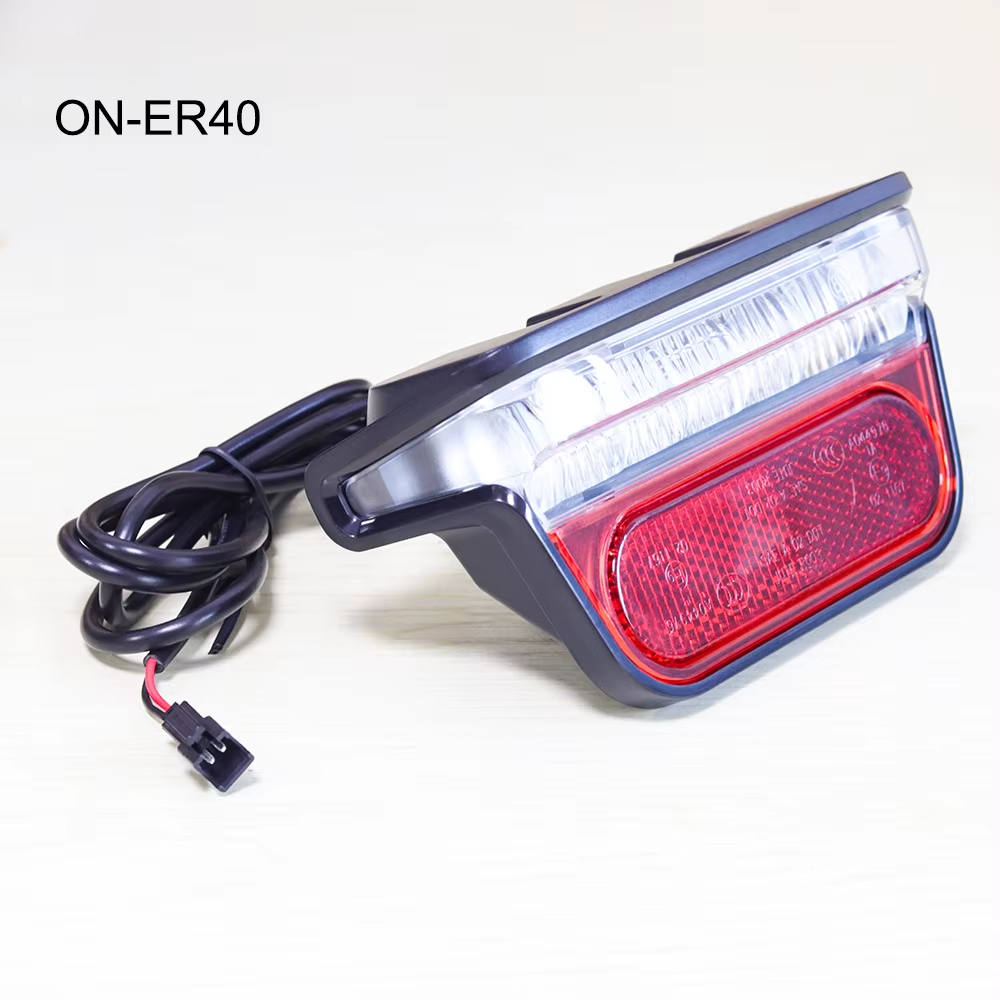

Difference of ON-ER40
1.Power is 3W,total 50 lumens.
2.Come with SM connector,easy to connect with controller or motor.

About Rear Light Connector:

Please notice if buy ebike light set with horn switch, the rear light will come with SM Male Connector like below photo 1.
e.g: ON-EB100 ER30 ES02
ON-EB300 ER40N ES02

If you buy headlight+rear light set, then the rear light will come with 3 cables like below photo 2.
e.g: ON-EB300 ER40N

Horn and Light Switch:

1.For handlebar size:22.2mm
2.Product size:L50*W22*H42MM
3.Waterproof:IP65
4.Function:Control headlight horn and scooter light ON/OFF.
5.Cable length:1.5 m
6.Wires:Red is positive,yellow is for light,green is for horn.

Turn signal switch:

1.For handlebar size:22.2mm
2.Product size:L54*W27*H54MM
3.Waterproof:IP65
4.Function: Turn ON / OFF the headlight and horn, also can turn signal Left / Right.
5.Cable length:1.5 m

About Turn Signal Switch Wire:

Green – Left turning

Ocher — Right turning,

Purple – Front light

White – Negative

Red – Positive

Black -Horn
